Vertical VE5 Small Slew Drive Motor Can Be Matched With Sensor System

  • 1
  • 2

Brand Name : HANGTUO

Model Number : VE5

Certification : CE, ISO9001

Place of Origin : CHINA

MOQ : 1 PC

Price : 145~226 USD/PC

Supply Ability : 12000 PCS/YEAR

Delivery Time : 15~30 DAYS

Packaging Details : PLYWOOD BOX

Type : Slewing Drive

Material : 42CRMN or 50Mn

Application : Solar Power System

Warranty : 10 Years

Color : Customer Required

Size : 3 Inch - 25 Inch

Motor : 24V

Feature : Long Life

Contact Now

Vertical VE5 Small Slew Drive With 12 VDC Gearbox For Concentrated Fresnel Stations

Description

The solar tracking system is a mechanical and electronic control unit system that optimizes the use of sunlight in photothermal and photovoltaic power generation to achieve improved photoelectric conversion efficiency. It includes: slew drives, motors (DC, stepper, servo, planetary geared motors, push rod motors, etc.), worm gears, sensor systems, etc.

1. Flat single axis linkage

Suitable for latitudes below 30 degrees and ground slopes less than 12 degrees.

Vertical VE5 Small Slew Drive Motor Can Be Matched With Sensor System

2. Oblique single axis linkage

Suitable for medium to high latitudes, the ground needs to be approximately flat.

Vertical VE5 Small Slew Drive Motor Can Be Matched With Sensor System

3. Oblique single-axis unit

Suitable for medium to high latitudes.

Vertical VE5 Small Slew Drive Motor Can Be Matched With Sensor System

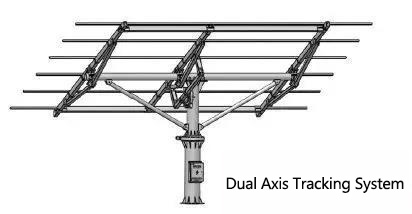

4. Dual axis

Vertical VE5 Small Slew Drive Motor Can Be Matched With Sensor System

Features

1. Rotate from 0~180°

2. Connect a driving motor on the left or right side

3. Grease filled before factory

4. Simple installation

5. Low maintenance

6. The gear is self-locking; therefore a brake is not necessary

7. High backholding torque, suitable for vertical installation

Vertical Slew Drive Performance Parameters

Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg
